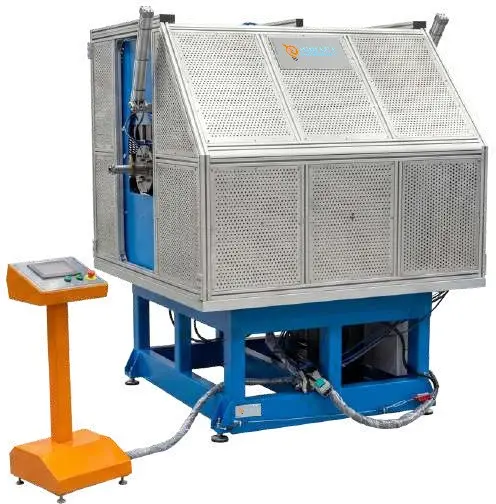

Transformer Angle Ring Machine
High-frequency drying and forming equipment for transformer pressboard angle rings, combining hydraulic pressing, controlled heating and short production cycles.
Machine Overview
Engineered for transformer production.
The ISL-ARM forms moist pressboard between customer-specific male and female molds while hydraulic pressure preserves the required diameter and radius.
High-frequency drying removes moisture uniformly, while the heated lower plate and ventilation system support rapid vapor evacuation. Internal and external forming can be performed with one mold set.
Machine Gallery
Transformer Angle Ring Machine views and configurations
ISL-ARM
Key Features
Production-focused equipment design
High-Frequency Drying
60-Ton Hydraulic Press
Internal and External Forming
PLC-Controlled Cycle
Custom Mold Geometry
Ventilated Safety Cabin
Technical Data
Catalogue specifications
| Weight | 1200 kg |
|---|---|
| Machine Dimensions | 1400 x 3900 x 2200 mm |
| High-Frequency Power | 30 kW |
| Installed Power | 45 kW |
| Hydraulic Press Force | 60 tons at 200 bar |
| Heated Table | 800 x 1400 mm |
| Typical Process Time | 12-15 minutes |
| Air Pressure | 6 bar |
Custom Engineering
Discuss your production requirement.
Dimensions, capacity, controls and integration can be configured for your transformer manufacturing process.
