COIL HANDLING SYSTEM
Transformer Coil Lifting Traverse
Manual and automatic telescopic lifting traverses for placing LV and HV coil phases accurately and safely onto transformer cores.
Machine Overview
Engineered for transformer production.

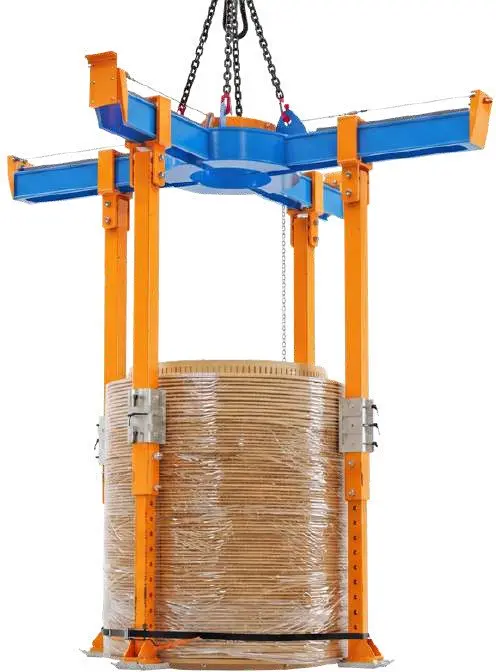

The coil lifting traverse handles heavy windings and positions LV and HV coil phases vertically on the transformer core with controlled, ergonomic operation.
Manual, manual-telescopic, automatic and automatic-telescopic configurations are available, with motorized leg positioning and interchangeable lifting buckets.
Machine Gallery
Transformer Coil Lifting Traverse views and configurations
COIL HANDLING SYSTEM
Key Features
Production-focused equipment design
Four Model Configurations

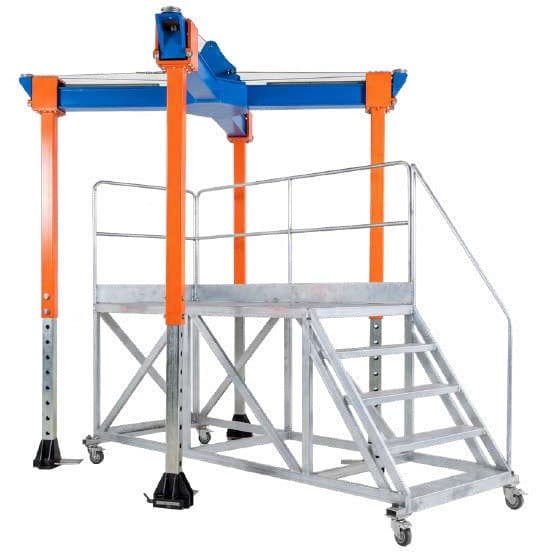

Automatic Telescopic Arms
Motorized Leg Positioning
Interchangeable Buckets
Remote Pendant Control
Custom Capacity and Dimensions
Technical Data
Catalogue specifications
| Illustrated Capacities | 5-ton manual and 20-ton automatic models |
|---|---|
| Power | 380 V / 3 phase / 50 Hz; optional 480 V / 60 Hz |
| Telescopic Leg Angles | 90, 75 and 60 degrees |
| Fine Leg Positioning | +/- 15 degrees |
| Control | Hanging remote push-button panel |
| Compliance | 2006/42/CE |
Custom Engineering
Discuss your production requirement.
Dimensions, capacity, controls and integration can be configured for your transformer manufacturing process.
