15-TON ILLUSTRATED MODEL

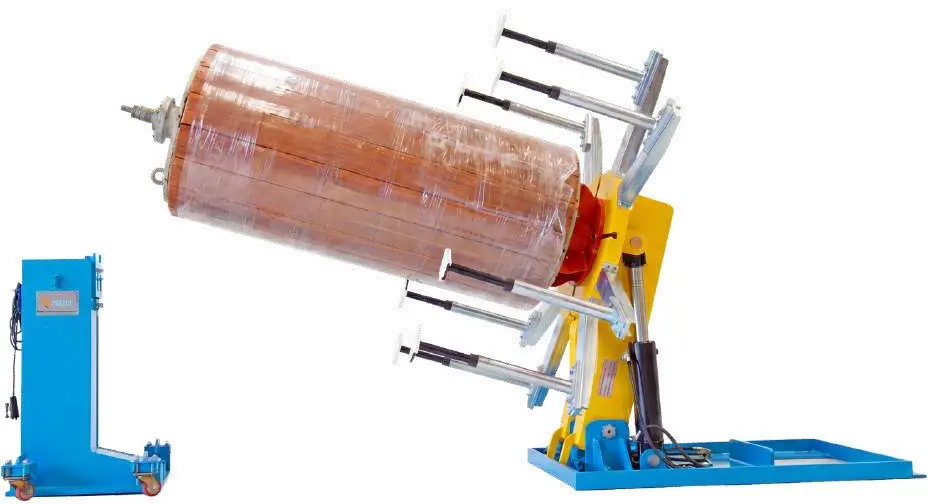

Transformer Coil Upender
Remote-controlled hydraulic equipment for safely tilting transformer windings, coils and mandrels between horizontal and vertical positions.
Machine Overview
Engineered for transformer production.
The coil upender rotates windings, coils and mandrels through 90 degrees using an integrated hydraulic system, with crane-assisted manual operation also available.
Adjustable support legs and a moving cradle hinged to a fixed base secure the load against slipping or falling throughout the operation.
Machine Gallery
Transformer Coil Upender views and configurations
15-TON ILLUSTRATED MODEL
Key Features
Production-focused equipment design
Hydraulic 90-Degree Upending
Remote Control
Crane-Assisted Operation
Adjustable Coil Supports
Hinged Moving Cradle
Custom Load Capacity
Technical Data
Catalogue specifications
| Illustrated Capacity | 15 tons |
|---|---|
| Tilting Range | Horizontal to vertical, 90 degrees |
| Operating Modes | Integrated hydraulic system or crane-assisted manual |
| Safety | Adjustable support legs and load cradle |
| Customization | Dimensions, capacity and RAL color |
Custom Engineering
Discuss your production requirement.
Dimensions, capacity, controls and integration can be configured for your transformer manufacturing process.
