ISL-CECM
Cylinder Edge Chamfering Machine
Cutting and grinding equipment for sizing and chamfering pressboard layers before transformer insulation cylinder forming.
Machine Overview
Engineered for transformer production.
The ISL-CECM combines sequential cutting and grinding to create a precise, clean edge before pressboard is formed into a transformer insulation cylinder.
Its surface-mounted construction eliminates the need for a foundation pit and supports long material layers used in large transformer insulation components.
Machine Gallery

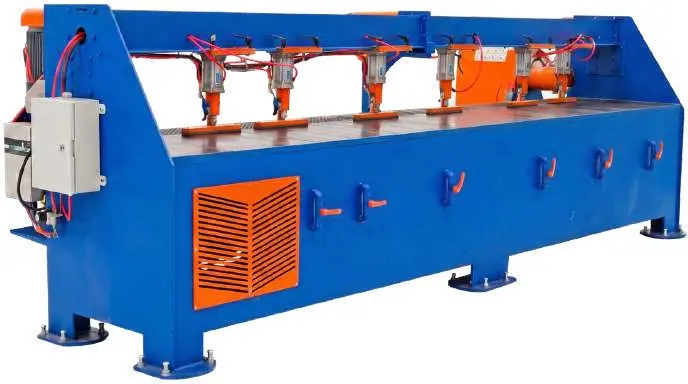

Cylinder Edge Chamfering Machine views and configurations
ISL-CECM
Key Features
Production-focused equipment design
Integrated Cutting and Grinding
Clean Chamfered Finish
Long Material Processing
Surface-Mounted Installation
No Foundation Pit
Transformer Pressboard Application
Technical Data
Catalogue specifications
| Maximum Chamfering Length | 7000 mm |
|---|---|
| Material Thickness | 3-8 mm |
| Process | Sequential cutting and grinding |
| Installation | Floor-mounted; no foundation pit required |
Custom Engineering
Discuss your production requirement.
Dimensions, capacity, controls and integration can be configured for your transformer manufacturing process.
