WINDING TECHNOLOGY
Horizontal Wire Decoiler System
Modular horizontal payoff and decoiling equipment with pneumatic reel braking, guided lateral travel and 90-degree operating flexibility.
Machine Overview
Engineered for transformer production.
The horizontal wire decoiler accepts a configurable number of reels up to 800 mm diameter and uses 90-degree rotating arms for vertical or horizontal winding arrangements.
Pneumatic reel brakes, separating rollers, straightening rollers and operator-controlled lateral movement provide orderly wire feeding and precise guidance.
Machine Gallery

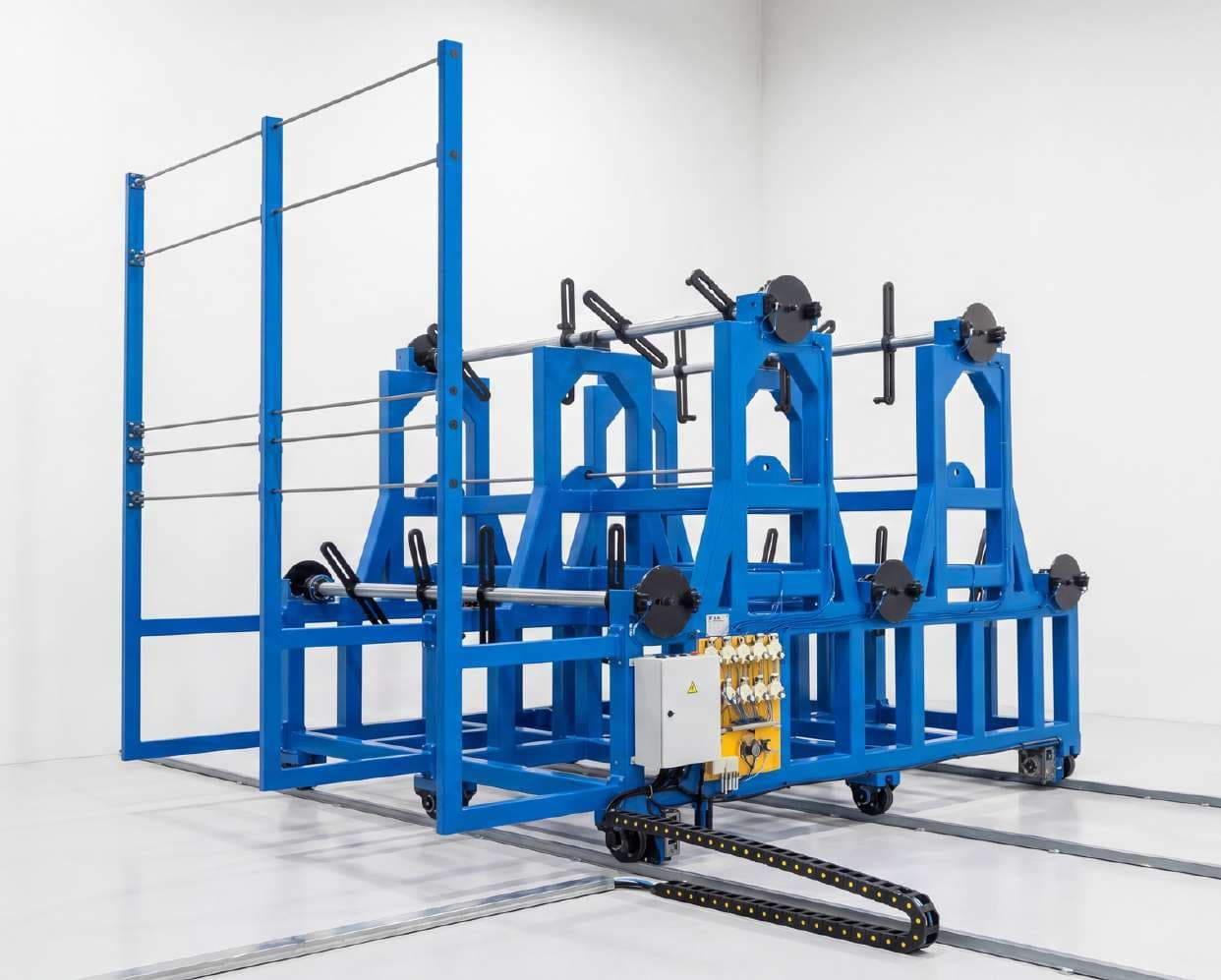

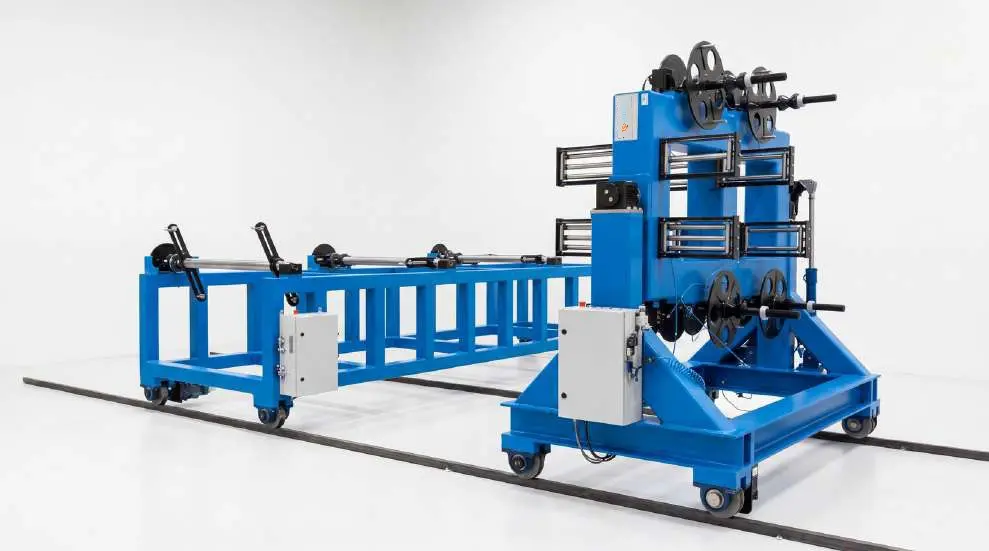

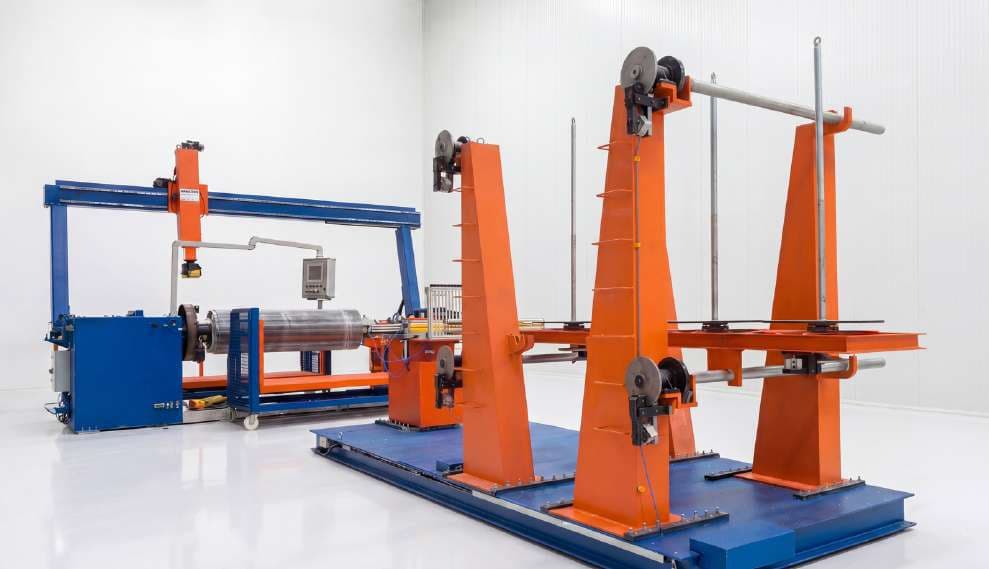

Horizontal Wire Decoiler System views and configurations
WINDING TECHNOLOGY
Key Features
Production-focused equipment design
Configurable Reel Capacity
Up to 800 mm Reels
90-Degree Rotating Arms
Pneumatic Reel Brakes
3000 mm Lateral Travel
Panel-Controlled Operation
Technical Data
Catalogue specifications
| Maximum Reel Diameter | 800 mm |
|---|---|
| Pneumatic Brake Pressure | 6 bar |
| Lateral Travel | 3000 mm |
| Orientation | Horizontal or vertical via 90-degree arms |
| Wire Preparation | Separating, straightening and compression rollers |
Custom Engineering
Discuss your production requirement.
Dimensions, capacity, controls and integration can be configured for your transformer manufacturing process.
