S-90 BENDING SYSTEM

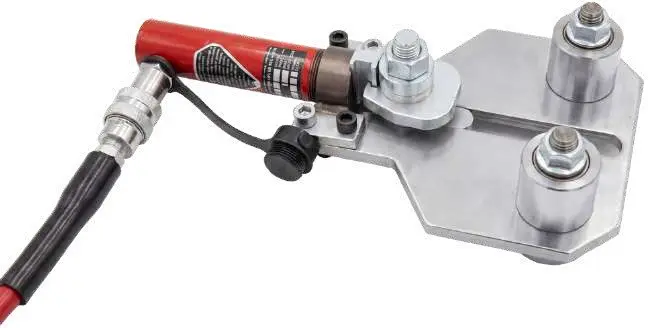

S-90 Degree Bending Unit
Automatic S-shaping and 90-degree conductor bending equipment designed to simplify winding operations and reduce process time.
Machine Overview
Engineered for transformer production.
The S-90 bending unit uses a motor-reducer drive, linear slides and pressure sensors to form conductors automatically or manually during transformer winding.
Encoder measurement, adjustable compression rollers and operator-terminal control support repeatable bending while the unit moves with the wire braking system.
Machine Gallery
S-90 Degree Bending Unit views and configurations
S-90 BENDING SYSTEM
Key Features
Production-focused equipment design

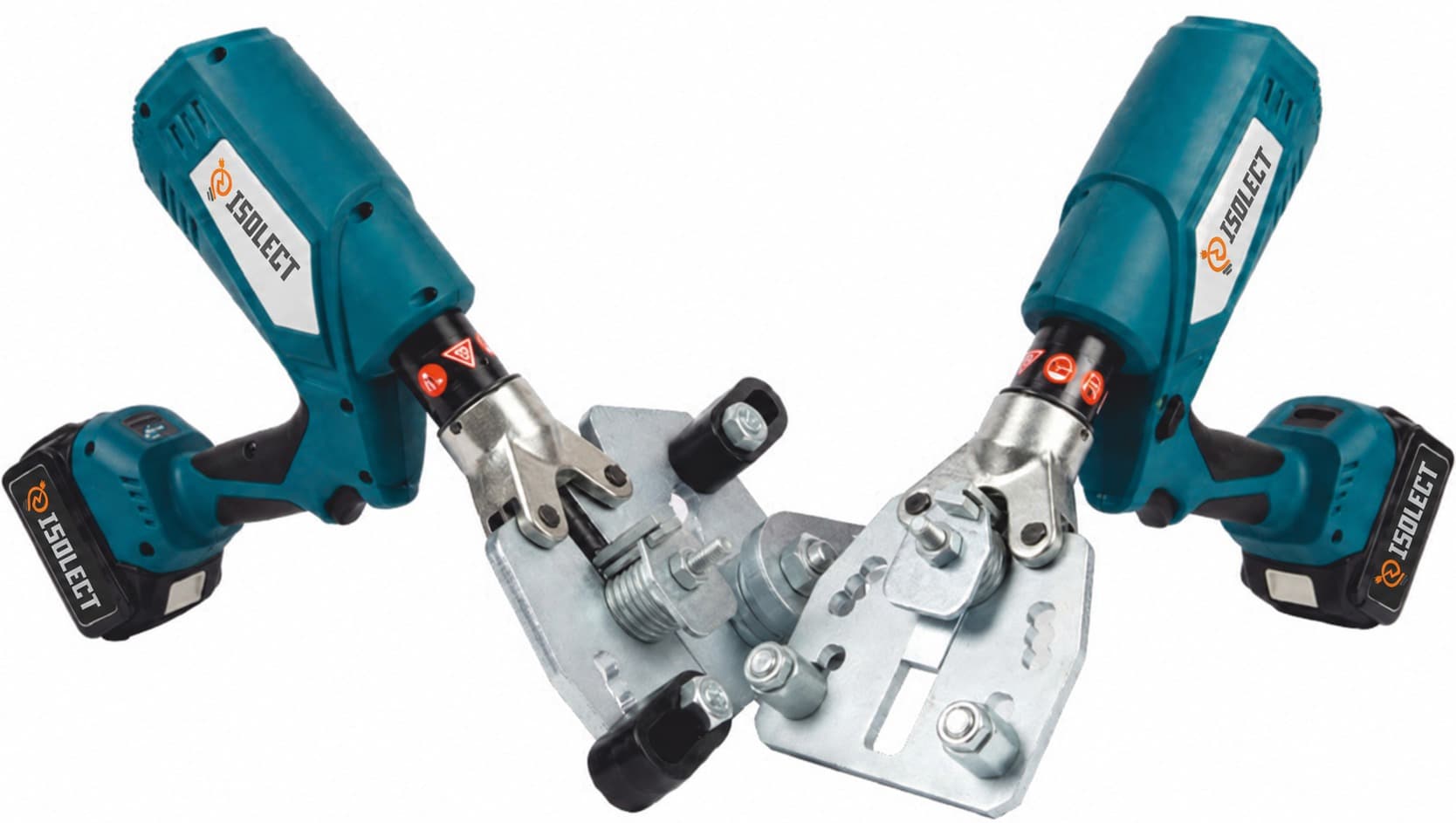

Automatic S Shaping
Manual or Automatic Operation
Pressure-Sensor Control
Encoder Measurement
Adjustable Compression Rollers
Terminal-Controlled Movement
Technical Data
Catalogue specifications
| Illustrated Capacity | 5 tons |
|---|---|
| Drive | Electric motor-reducer |
| Versions | Electric and hydropneumatic |
| Movement | Linear slides; up/down with wire brake |
| Adjustment | Manual wire thickness and bending settings |
Custom Engineering
Discuss your production requirement.
Dimensions, capacity, controls and integration can be configured for your transformer manufacturing process.
