WINDING TECHNOLOGY

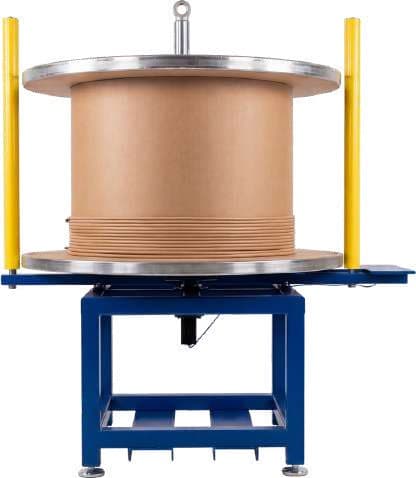

Vertical Wire Decoiler System
Vertical wire payoff, guiding and pneumatic braking stands for smooth, accurately tensioned transformer coil winding.
Machine Overview
Engineered for transformer production.
The vertical decoiler guides incoming wire and controls reel tension so conductors are placed neatly and uniformly on the transformer coil.
Adjustable reel support, chrome-plated height-adjustment legs and a robust body provide flexible, ergonomic operation for different reel sizes.
Machine Gallery
Vertical Wire Decoiler System views and configurations
WINDING TECHNOLOGY
Key Features
Production-focused equipment design
Wire Payoff and Guiding
Pneumatic Reel Braking
Adjustable Reel Tension
Height-Adjustable Stand
Precision Spool Centering
Lifting Eyes for Handling
Technical Data
Catalogue specifications
| Pneumatic Braking Pressure | 8 bar |
|---|---|
| Spool Centering Shaft | 45 mm diameter |
| Rotary Table | 15 mm |
| Reel Diameter | Configurable to production requirement |
| Height Adjustment | Chrome-plated adjustable legs |
Custom Engineering
Discuss your production requirement.
Dimensions, capacity, controls and integration can be configured for your transformer manufacturing process.
