Transformer Wire Braking System

Pneumatic multi-conductor braking and tension-control equipment for stable, aligned and tightly wound transformer coils.

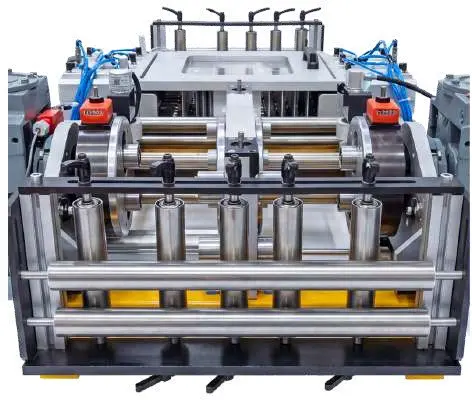

ISOLECT multi-conductor wire braking system

Machine Overview

Engineered for transformer production.

Each conductor is braked independently between polished chrome plates so equal, progressively adjustable tension can be applied without damaging conductor insulation.

Motorized vertical and horizontal positioning, pneumatic clamping and operator-panel control allow the system to align incoming wires for safe and consistent winding.

Machine Gallery

Transformer Wire Braking System views and configurations

WINDING TECHNOLOGY

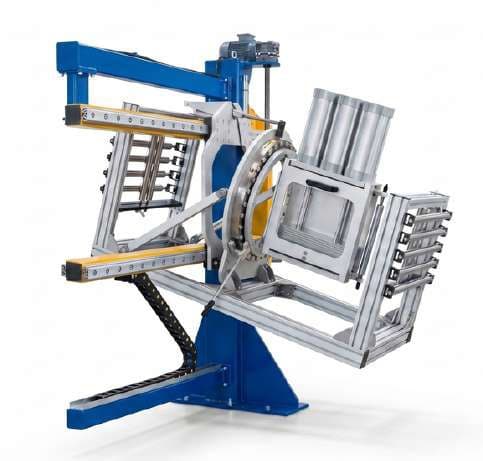

Transformer wire brake mounted on winding equipment — Wire braking unit integrated with winding machinery

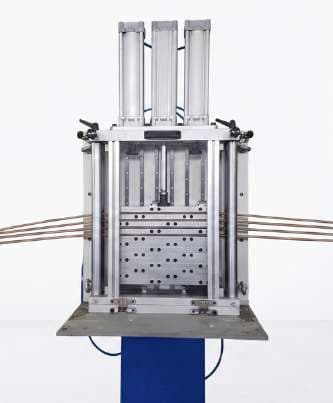

Chrome plate transformer wire tensioning mechanism — Polished chrome braking plates for independent conductor tension

Key Features

Production-focused equipment design

Independent Conductor Braking

Polished Chrome Plates

Adjustable Pneumatic Tension

Motorized Axis Movement

Operator Panel Control

Single and CTC Conductors

Technical Data

Catalogue specifications

Illustrated Mechanism	12-unit wire brake
Pneumatic Pressure	6 bar
Tension Adjustment	Progressive potentiometer control
Movement	Motorized vertical and horizontal axes
Conductor Types	Specified single and CTC conductors

Custom Engineering

Discuss your production requirement.

Dimensions, capacity, controls and integration can be configured for your transformer manufacturing process.
