Ring Insulation
Winding Machines
High-precision ring insulation winding machines designed for transformer shield rings and insulation ring production, delivering consistent tape tension, accurate pitch control and repeatable winding quality.
Consistent insulation winding for transformer ring production.

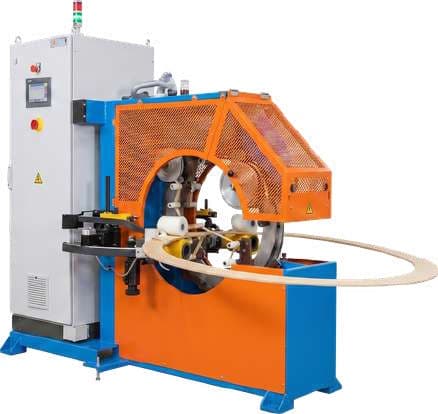

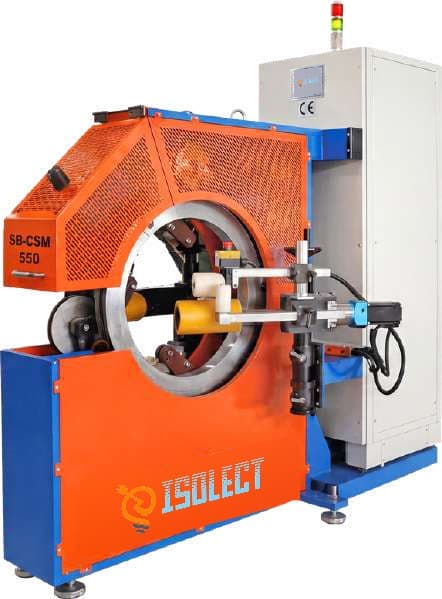

Ring insulation winding machines are engineered for manufacturing transformer insulation rings and shield rings requiring precise tape placement and consistent winding quality.
The system provides highly accurate pitch control through synchronized push and pull servo motors, eliminating winding errors and ensuring repeatable production results.
Independent braking systems for each tape guarantee uniform tension throughout the winding process while preventing gaps and maintaining insulation integrity.
Built for transformer insulation component manufacturing

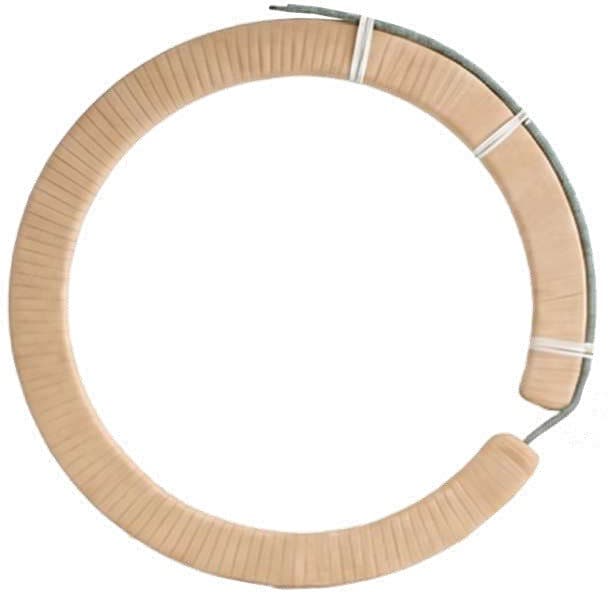

Shield Ring Production
Insulation Ring Manufacturing
HV Transformer Components
Power Transformer Production
Distribution Transformer Production
Pressboard Ring Insulation
Transformer Insulation Workshops
Custom Ring Manufacturing
Engineered for winding accuracy and process stability
4 Tape Simultaneous Winding
Servo-Controlled Pitch Management
Independent Tape Braking
Zero-Error Pitch Control
Touchscreen HMI Interface
Panel & Pedal Operation
Variable Speed Foot Pedal
Top Cover Safety System
Wear-Resistant Aluminum Components
Precision pitch management and tape tension control.
Push and pull servo motors work together to provide highly accurate pitch control throughout the winding cycle.
Independent braking systems for each tape maintain identical winding quality around the entire ring while eliminating gaps and tension variations.
The operator can manage winding parameters through the touchscreen interface, control panel or variable-speed foot pedal depending on production requirements.
Production-ready winding performance
| Specification | Value |
|---|---|
| Machine Dimensions | 700 × 500 × 1900 mm |
| Maximum Rotation Speed | 60 RPM |
| Winding Configuration | 4 Tape Simultaneous Winding |
| Pitch Adjustment | Adjustable Winding Ratio |
| Drive Technology | Push & Pull Servo Motors |
| Braking System | Independent Brake System for Each Tape |
| Operator Interface | Touchscreen + Panel + Foot Pedal |
| Safety System | Top Cover Safety Protection |
| Core Components | Wear-Resistant Coated Aluminum Cores & Pulleys |
Optimized for different ring diameters and insulation structures.
Transformer manufacturers often require different ring dimensions, insulation thicknesses and winding patterns depending on transformer design specifications.
ISOLECT develops ring insulation winding solutions according to ring dimensions, insulation materials, winding requirements and production capacity targets.
This approach ensures consistent insulation quality, faster production cycles and long-term manufacturing reliability.
Zero-Error Pitch Control
Consistent Tape Tension
Higher Ring Quality
Reduced Production Time
