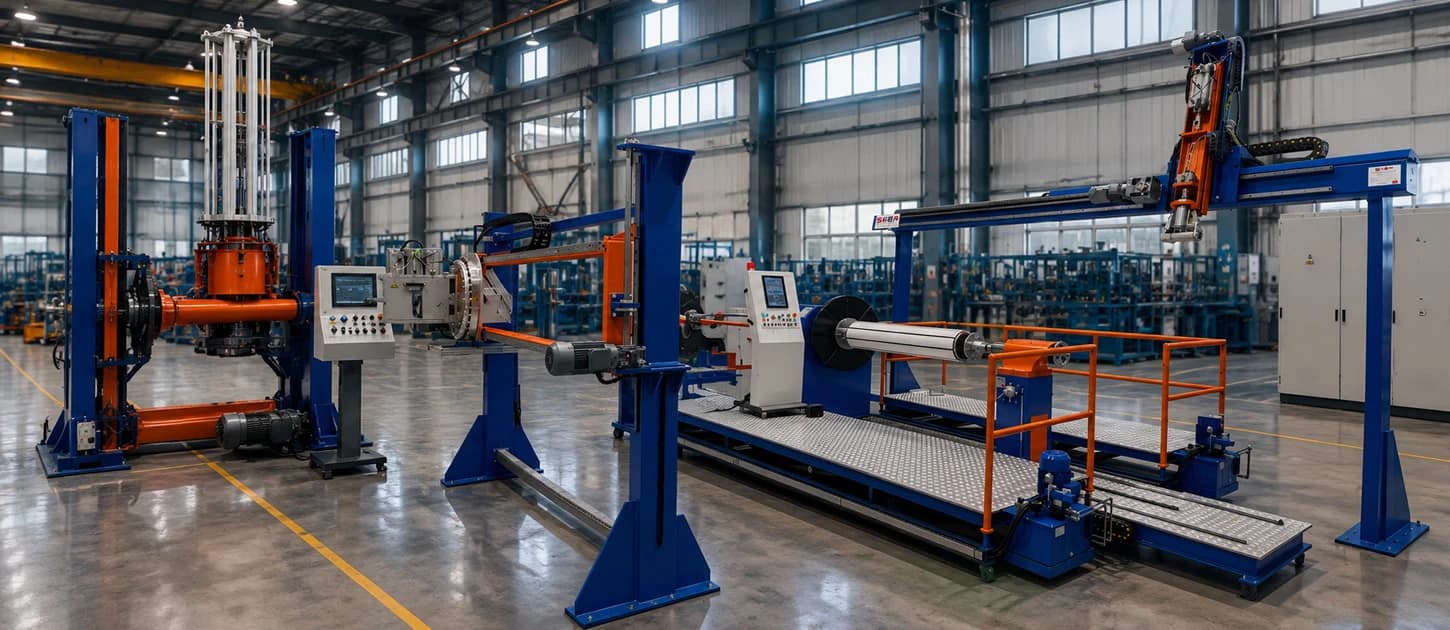

Horizontal Winding
Machines
Heavy-duty horizontal winding machines engineered for transformer coil production, delivering exceptional torque, precise winding control and reliable performance for modern transformer manufacturing facilities.

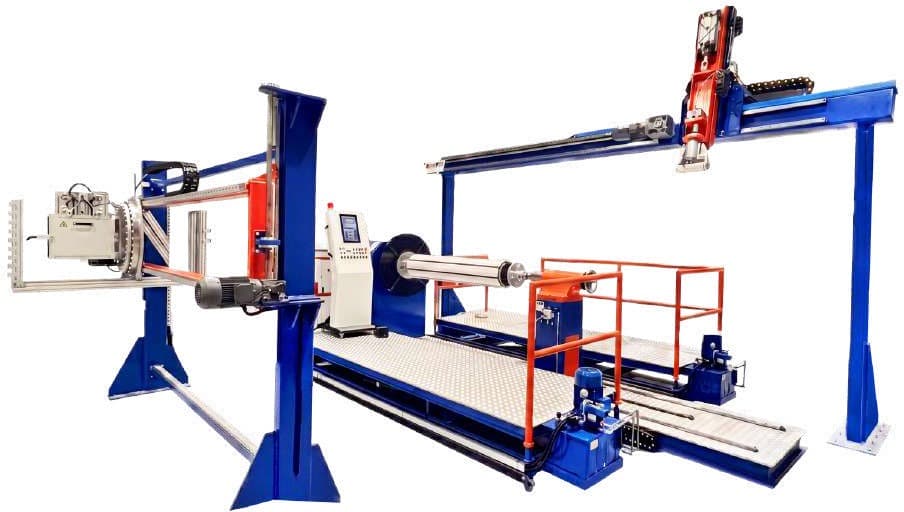

Designed for heavy-duty transformer coil manufacturing.
Horizontal winding machines are specifically designed for the production of transformer coils requiring high winding accuracy, stable torque characteristics and reliable process control throughout the manufacturing cycle.
Their robust construction enables the production of large transformer coils while maintaining excellent winding quality and repeatability for both copper and aluminum conductor applications.
ISOLECT horizontal winding machines combine advanced automation, ergonomic operation and flexible machine configurations to meet the requirements of transformer manufacturers worldwide.
Built for transformer production environments
Power Transformers
Distribution Transformers
Medium Voltage Transformers
High Voltage Transformers
LV Windings
HV Windings
Copper Coil Production
Transformer Manufacturing Plants
Engineered for productivity and precision
Double-Sided Operation
Bi-Directional Print Head
Wire Feeder Integration
Independent Operating Mode
Top Pressure System Infrastructure
Single Point Control Access
Encoder-Based Position Control
Siemens PLC Automation
Heavy-Duty Machine Construction

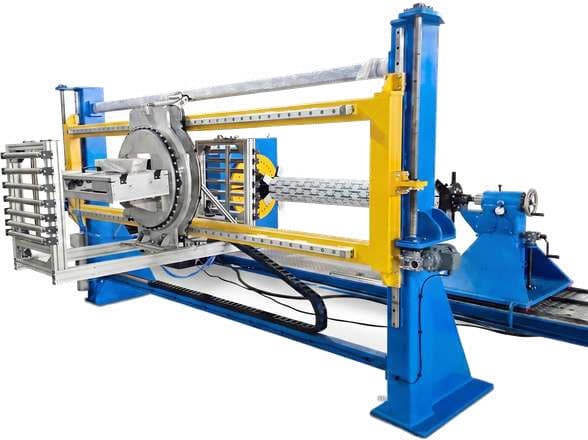

Advanced control architecture for winding accuracy.
The control system is based on Siemens PLC architecture with a touchscreen HMI interface for machine monitoring, production management and parameter control.
Encoder-based position and rotation control ensures accurate winding quality while analogue speed adjustment provides smooth operation throughout the winding process.
The machine supports both panel and pedal operation and can be integrated into modern manufacturing environments through Modbus RTU, Modbus TCP and Profinet communication protocols.
Available machine configurations
| Specification | HWM-500 | HWM-1000 | HWM-1500 | HWM-2000 |
|---|---|---|---|---|
| Carrying Force Between Centers | 5,000 kg | 10,000 kg | 15,000 kg | 20,000 kg |
| Winding Speed | 0-15 RPM | 0-15 RPM | 0-15 RPM | 0-15 RPM |
| Torque | 7,200 Nm | 14,000 Nm | 18,000 Nm | 22,000 Nm |
| AC Motor Power | 7.5 kW | 15 kW | 18.5 kW | 22 kW |
| Max Coil Diameter | 1500 mm | 2000 mm | 2500 mm | 3000 mm |
| Max Coil Length | 2000 mm | 2500 mm | 3000 mm | 3500 mm |
| Center Distance (Min-Max) | 2000-3000 mm | 2250-3750 mm | 2750-4500 mm | 3000-5000 mm |
| Center Height Above Floor | 800 mm | 1100 mm | 1350 mm | 1800 mm |
| Face Plate Diameter | 700 mm | 800 mm | 900 mm | 1200 mm |
| Face Plate with T-Slots | 4 pcs | 4 pcs | 4 pcs | 8 pcs |
| Tailstock Total Movement | 1000 mm | 1500 mm | 1750 mm | 2000 mm |
Designed around your transformer production requirements.
Every transformer manufacturer operates with different production capacities, winding dimensions and conductor specifications.
ISOLECT develops horizontal winding machines according to coil dimensions, production targets, conductor types and factory layout requirements.
This engineering approach ensures maximum productivity, operational reliability and long-term manufacturing value.
High Torque Performance
Reliable Winding Quality
Operator Friendly Design
Flexible Production Capability
