Vertical Winding
Machines
High-capacity vertical winding machines engineered for medium and high voltage transformer coil production, delivering precision, repeatability and optimized factory workflow.
Built for large transformer coils and demanding production environments.

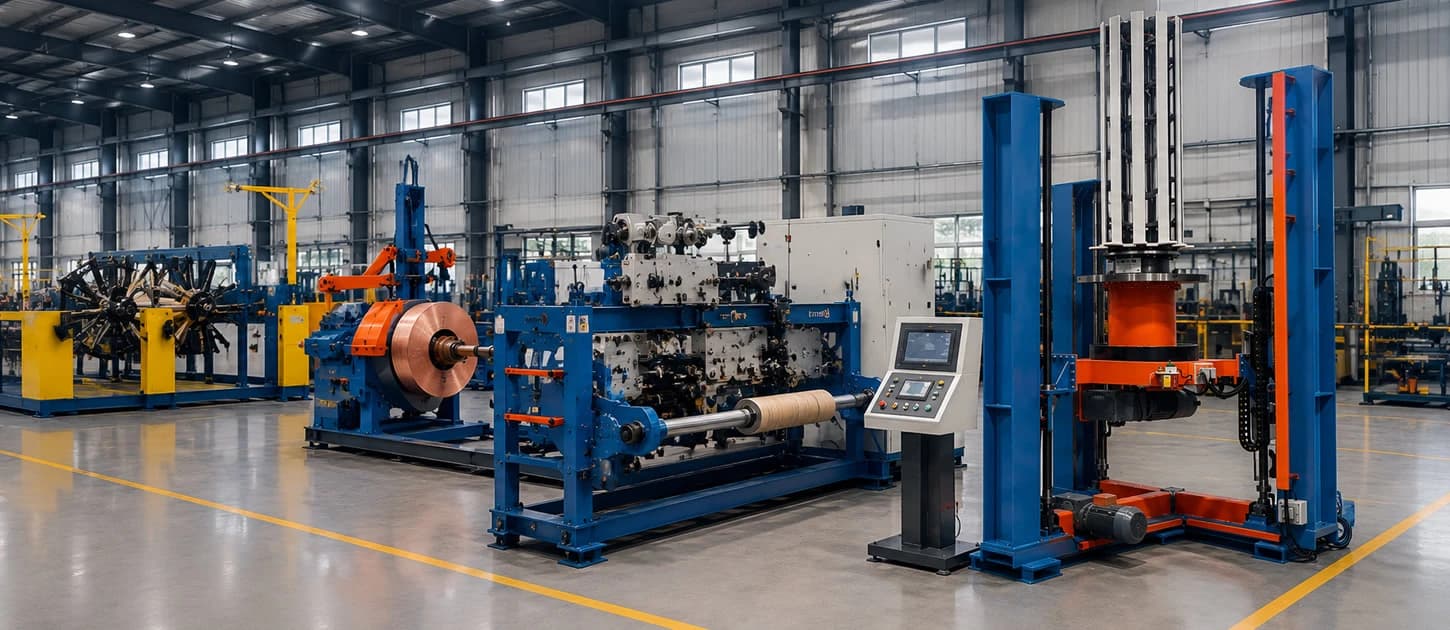

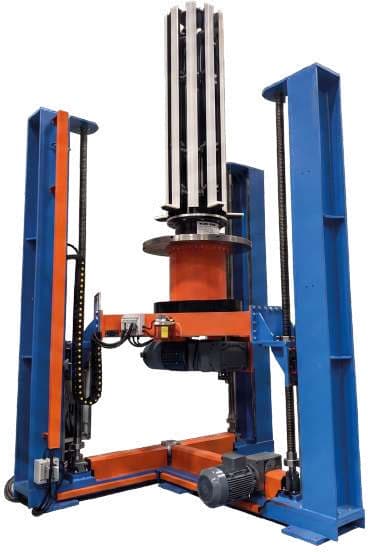

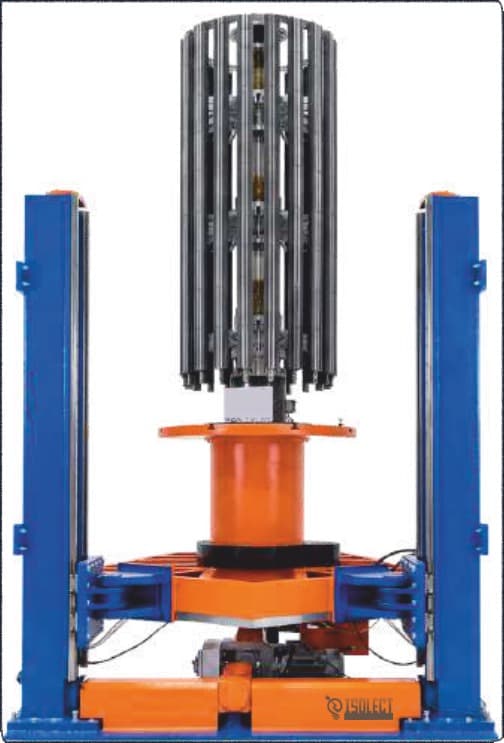

Vertical winding machines are specifically engineered for the precise and repeatable production of medium and high voltage transformer coils.
Compared to conventional horizontal winding systems, their floor-type architecture offers a more compact production layout, improved operator accessibility and a more efficient workflow throughout the manufacturing process.
The system supports LV, HV and tap winding production while providing exceptional winding quality for both single conductors and multiple parallel conductors.
Designed for modern transformer production
Medium Voltage Transformers
High Voltage Transformers
LV Windings
HV Windings
Tap Windings
Large Diameter Coils
Parallel Conductor Windings
Transformer Manufacturing Plants
Engineered for accuracy and process reliability
Floor-Type Machine Architecture
Touchscreen HMI Control
Encoder-Based Position Control
Bi-Directional Winding
Zero-Speed Locking
Automatic S-Bending Unit
High Precision Speed Control
Fast Regenerative Braking
Single & Multi-Conductor Capability
Advanced motion control and operator-friendly operation.

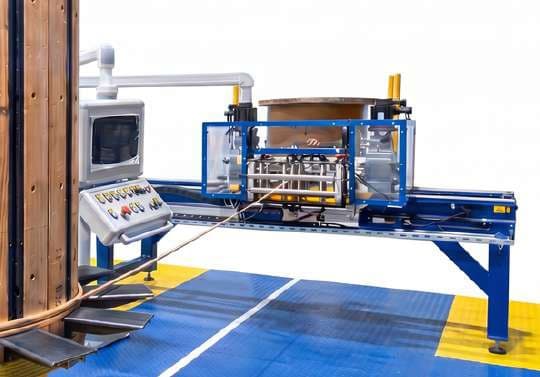

The machine is equipped with a touchscreen control panel for production monitoring, parameter management and machine control.
Encoder-based position and speed feedback provides accurate winding control while ensuring stable performance at both low and high operating speeds.
Operators can control the machine using either the HMI interface or foot pedal depending on production requirements and operator preferences.
Available machine configurations
| Specification | VWM-1000 | VWM-1500 | VWM-2000 |
|---|---|---|---|
| Max. Winding Weight | 10 Ton | 15 Ton | 20 Ton |
| Max. Coil Diameter | 2000 mm | 2500 mm | 3300 mm |
| Coil Length | 2000 mm | 2500 mm | 3000 mm |
| Installed Power | 30 kW | 35 kW | 40 kW |
| Optional Parallel Wires | 4 | 8 | 8 |
| Winding Speed | 2-20 RPM | 2-20 RPM | 2-20 RPM |
Configured around your transformer production requirements.
Every transformer factory has different production capacities, winding dimensions and operational requirements.
ISOLECT develops vertical winding solutions according to transformer dimensions, conductor specifications, production targets and factory layout requirements.
This approach ensures maximum production efficiency, process reliability and long-term operational value.
Compact Factory Layout
Improved Operator Access
Reduced Production Time
Lower Operating Costs
