Transformer Coil Isostatic Press
Systems
Transformer coil isostatic press systems—also known as isostatic winding press systems—developed for controlled axial compression during vacuum drying, preserving winding geometry and insulation performance.
Isostatic coil pressing for vacuum drying

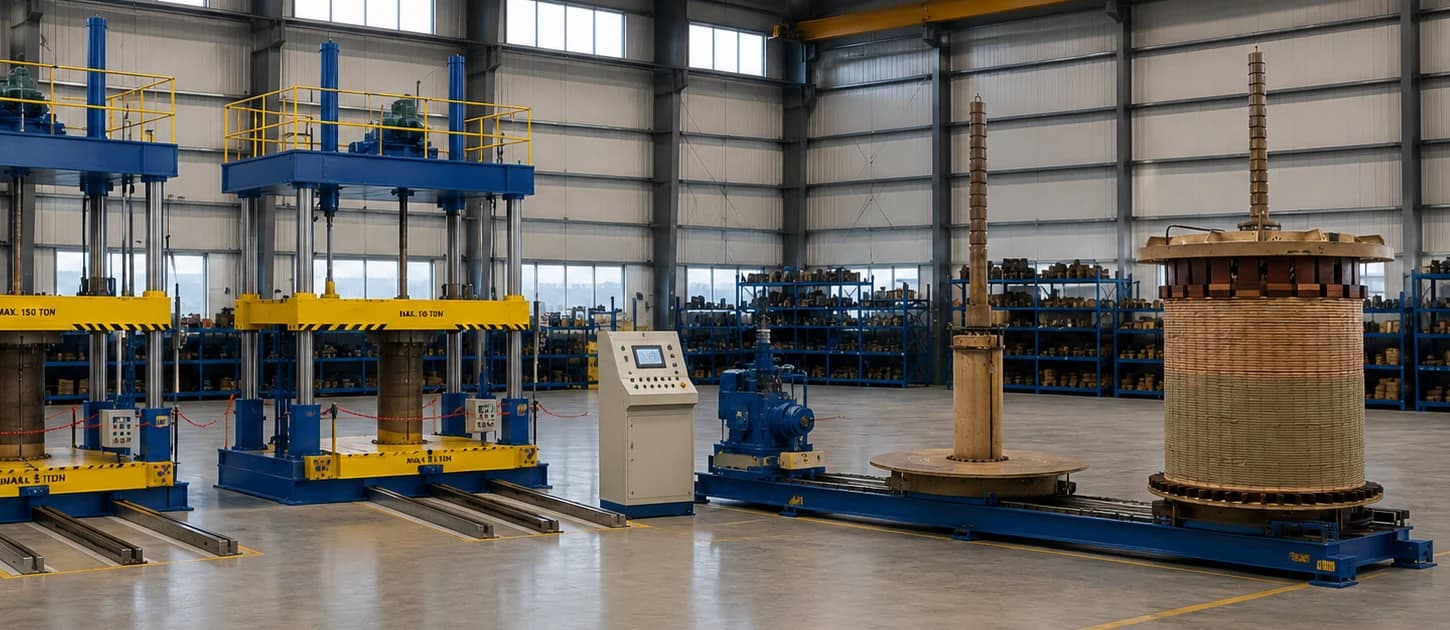

Isostatic coil pressing during transformer vacuum drying.
Isostatic press systems are engineered to apply constant and homogeneous pressure to transformer windings during vacuum drying operations.
By maintaining controlled axial compression, the system preserves winding geometry, prevents dimensional deformation and improves long-term transformer reliability.
The winding is accurately centered between specially designed support structures, ensuring safe operation and optimal pressure distribution throughout the entire drying cycle.
Designed for transformer drying and stabilization

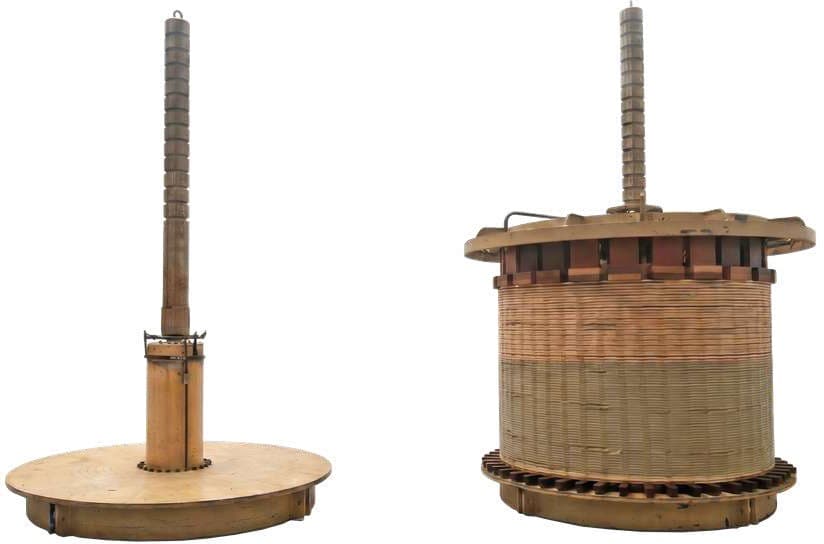

Power Transformer Windings
Vacuum Drying Processes
Coil Stabilization Operations
Transformer Manufacturing Plants
HV Winding Production
Large Power Transformer Coils
Insulation Drying Systems
Custom Transformer Production
Engineered for precision pressure control
Constant Pressure Application
Uniform Load Distribution
Large Stroke Hydraulic Cylinder
Electric Contact Pressure Gauge
Precise Winding Centering
Vacuum Drying Compatibility
Custom Configuration Options
Heavy-Duty Construction
Long-Term Reliability
Controlled compression throughout drying operations.
During vacuum drying, transformer windings require continuous axial pressure to maintain dimensional stability and prevent structural movement.
The isostatic press system delivers this pressure through a large-stroke hydraulic cylinder while ensuring smooth and controlled force transmission.
Pressure values are accurately adjusted and monitored using electric contact gauges, guaranteeing consistent production quality from batch to batch.
Engineered for transformer vacuum drying processes
| Specification | ISL-ISP |
|---|---|
| Machine Type | Hydraulic Isostatic Press System |
| Primary Application | Vacuum Drying Compression of Transformer Windings |
| Pressure Application | Constant & Uniform Axial Force |
| Centering System | Dedicated Upper & Lower Support Stands |
| Drive Technology | Large-Stroke Hydraulic Cylinder |
| Pressure Monitoring | Electric Contact Pressure Gauge |
| Configuration | Custom Manufactured According to Requirements |
| Production Environment | Vacuum Drying Systems |
Stable force transmission with precise pressure control.
The system utilizes a large-stroke hydraulic cylinder specifically engineered to maintain consistent force throughout extended vacuum drying cycles.
Dedicated upper and lower support assemblies ensure precise centering of transformer windings while preventing direct contact with press plates and eliminating deformation risks.
Controlled hydraulic movement allows pressure to be applied gradually and uniformly, ensuring optimal mechanical stability of the winding structure.
Developed according to transformer size and process requirements.
Every transformer manufacturer operates with different winding dimensions, vacuum drying systems and production requirements.
ISOLECT designs isostatic press systems according to customer-specific coil dimensions, pressure values, stroke requirements and installation conditions.
This engineering flexibility guarantees reliable performance, consistent pressure application and seamless integration into existing production lines.
Uniform Pressure Distribution
Improved Winding Stability
Enhanced Drying Performance
Long-Term Transformer Reliability
